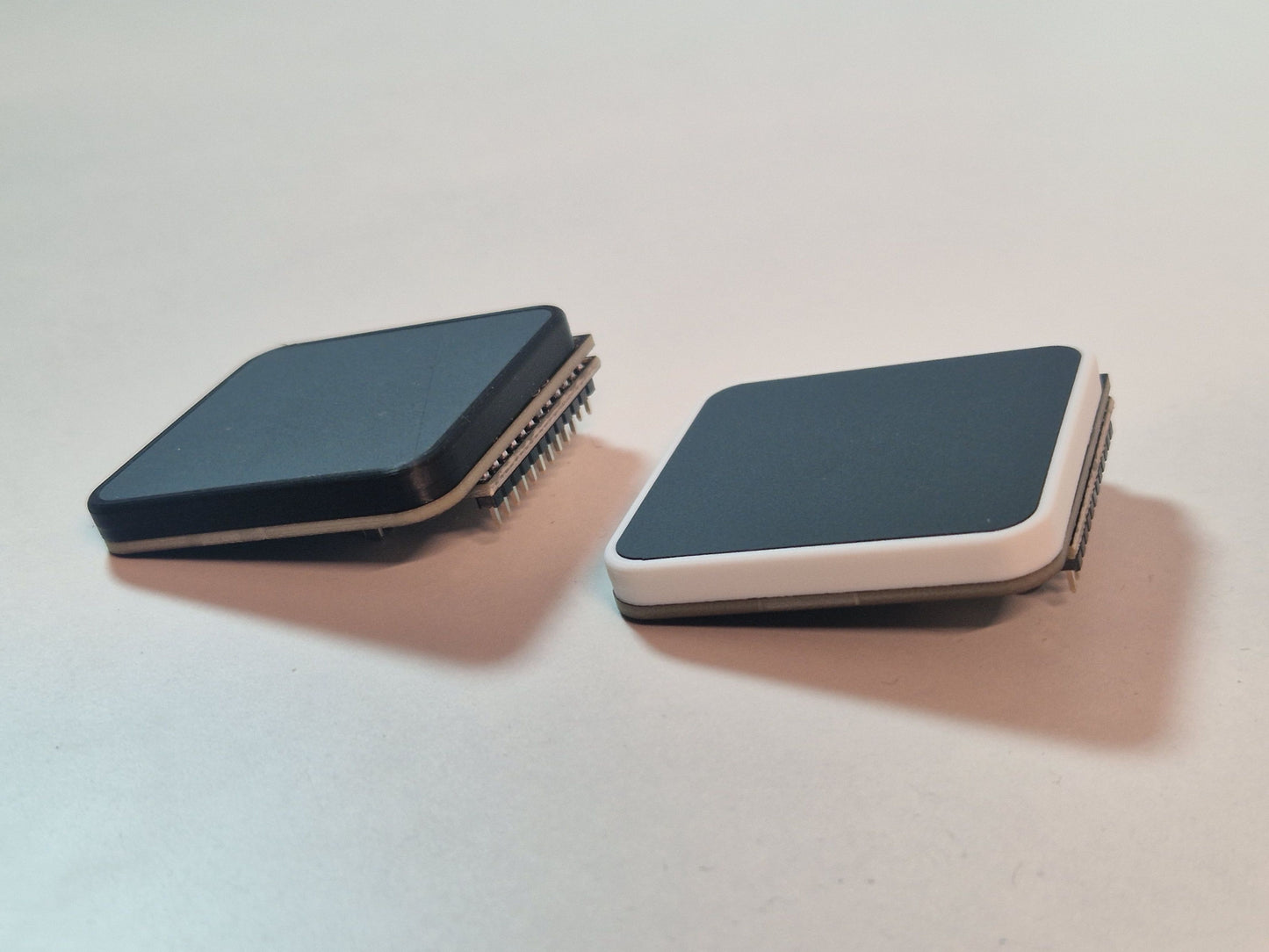

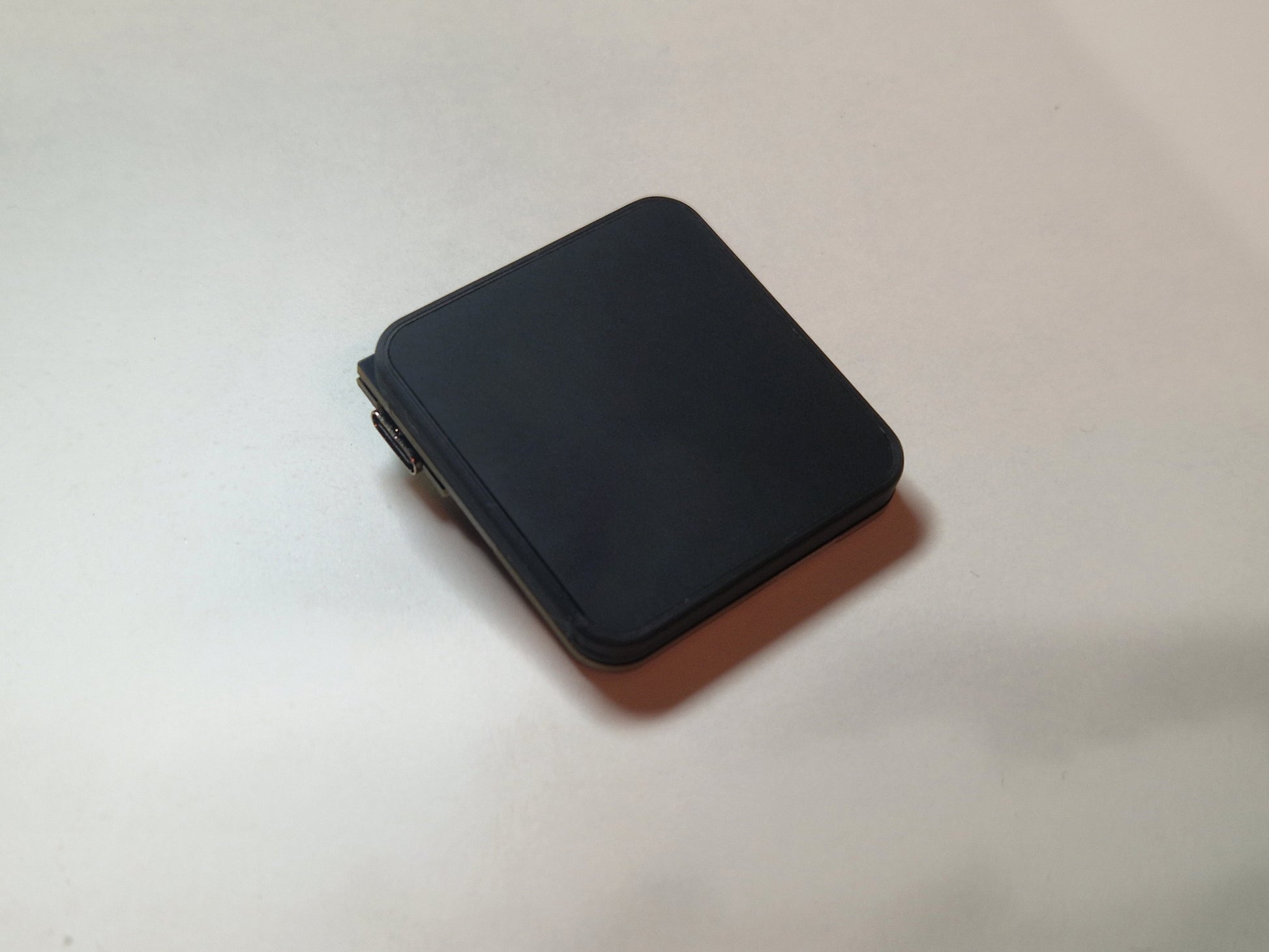

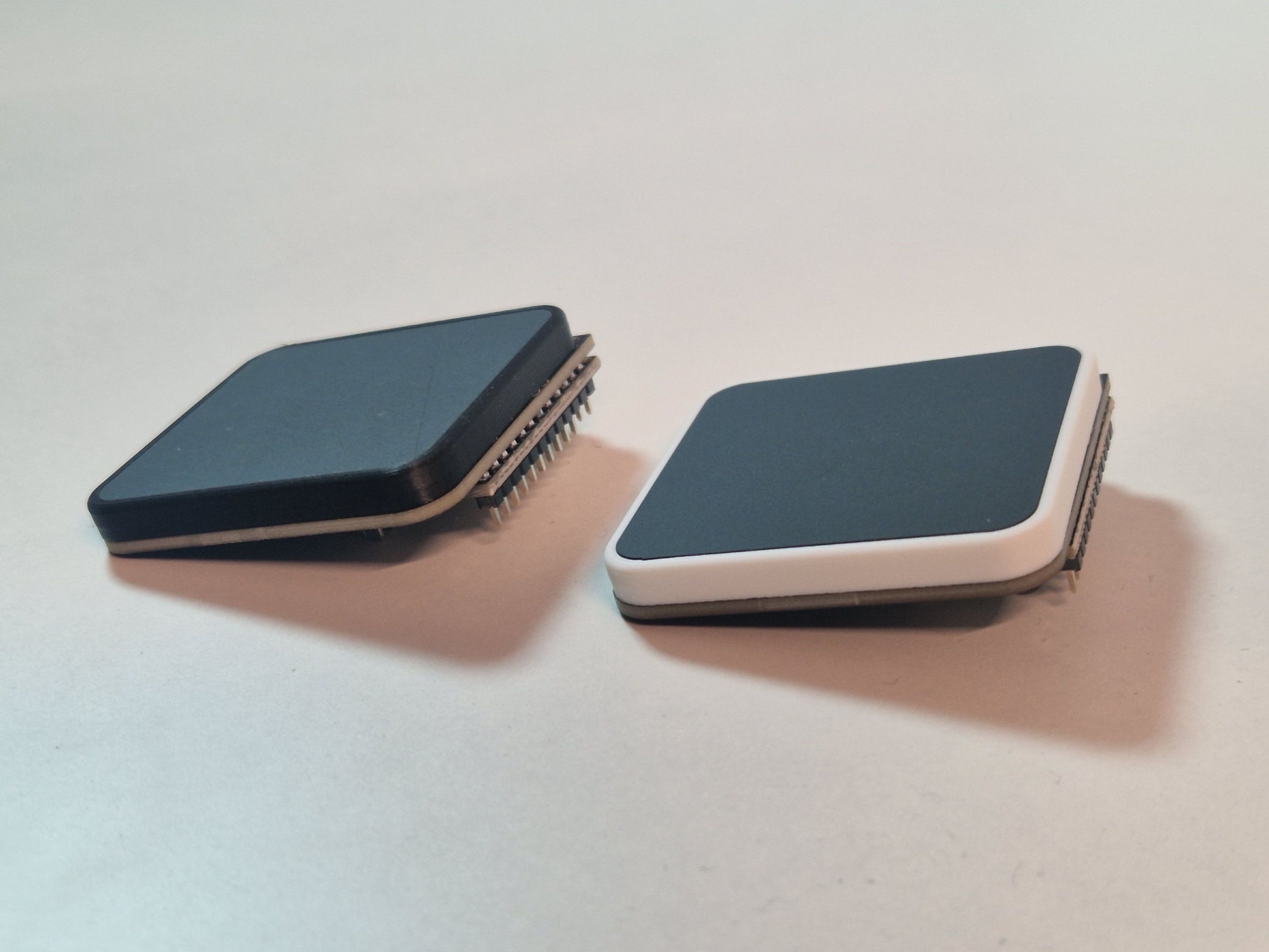

Touchpad Module

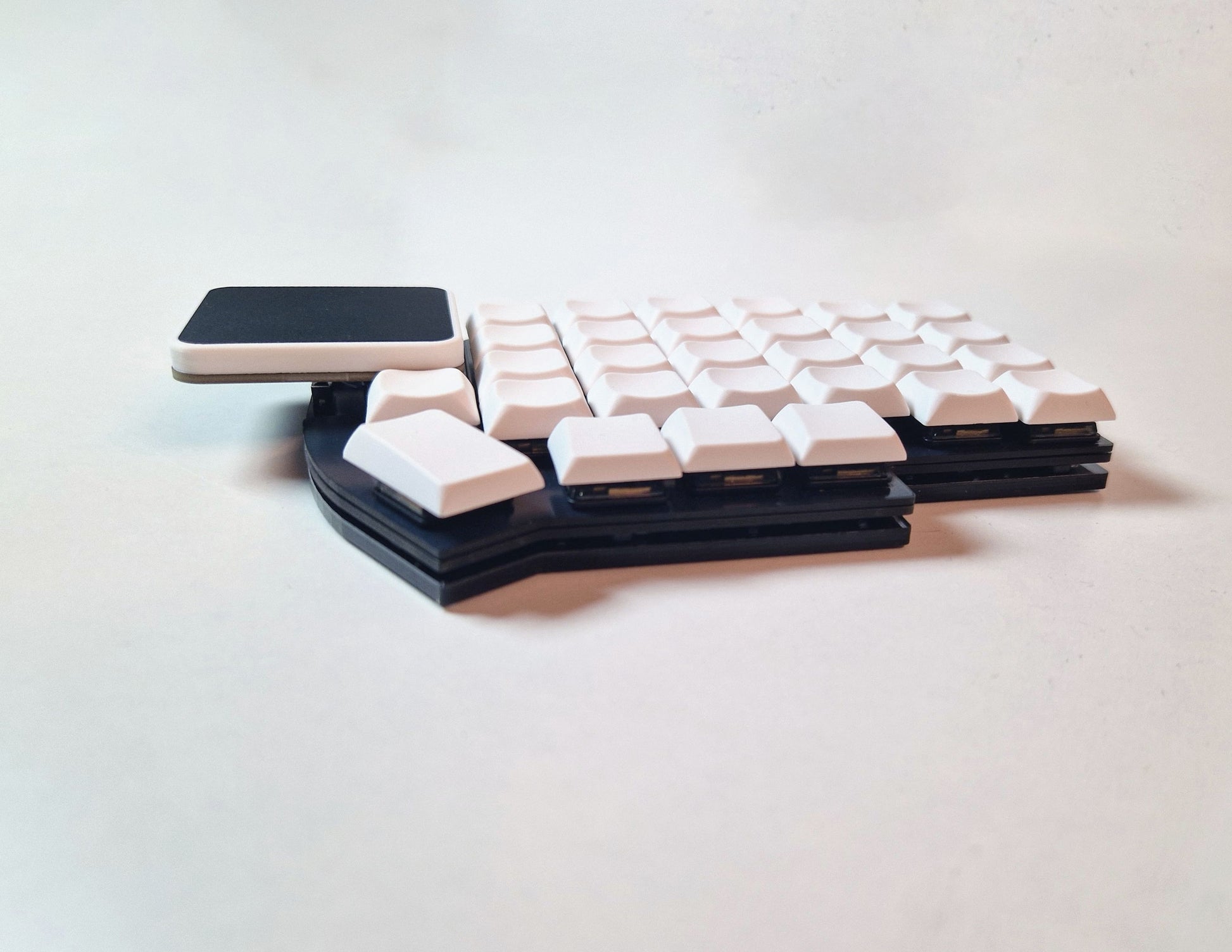

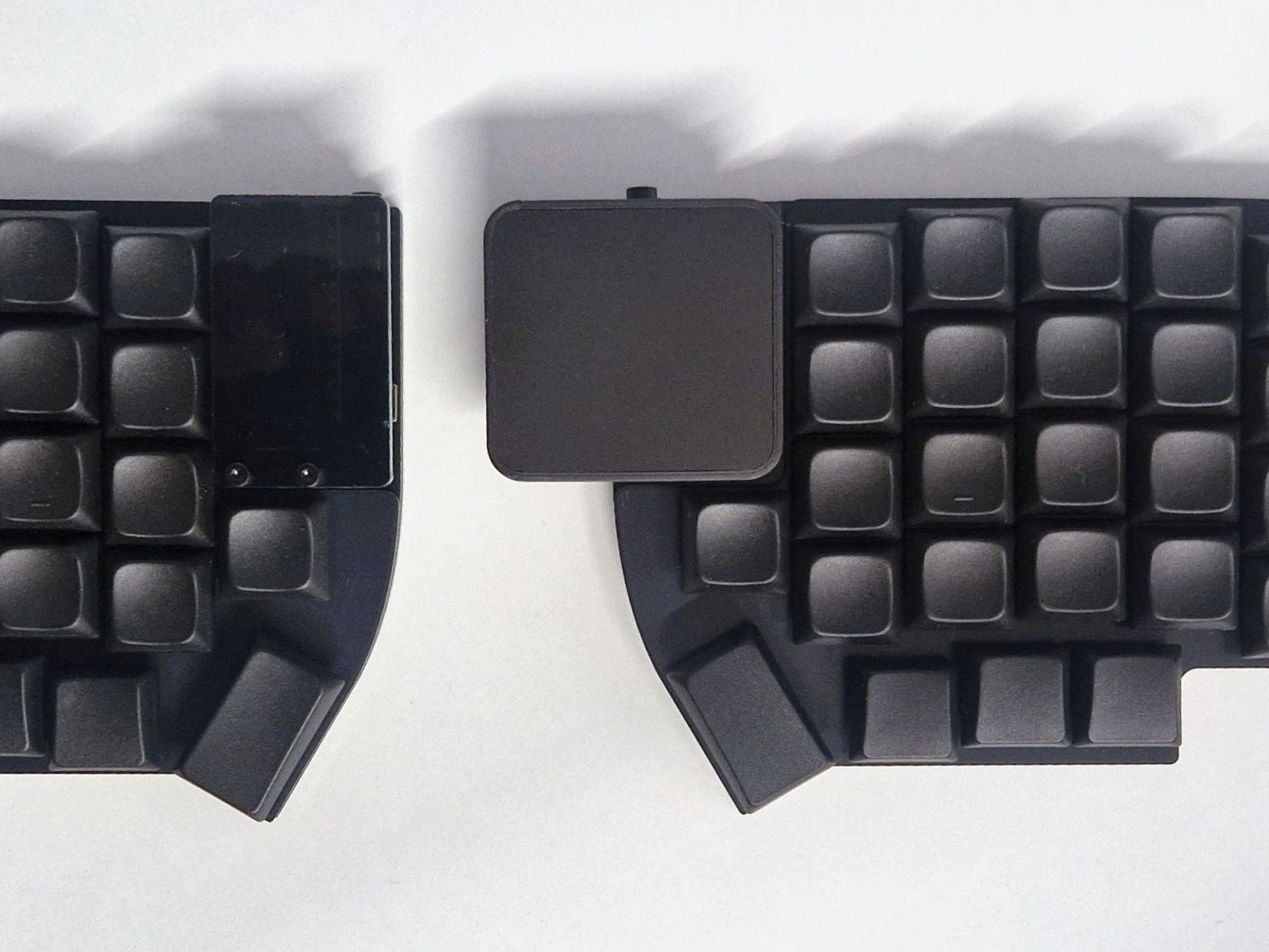

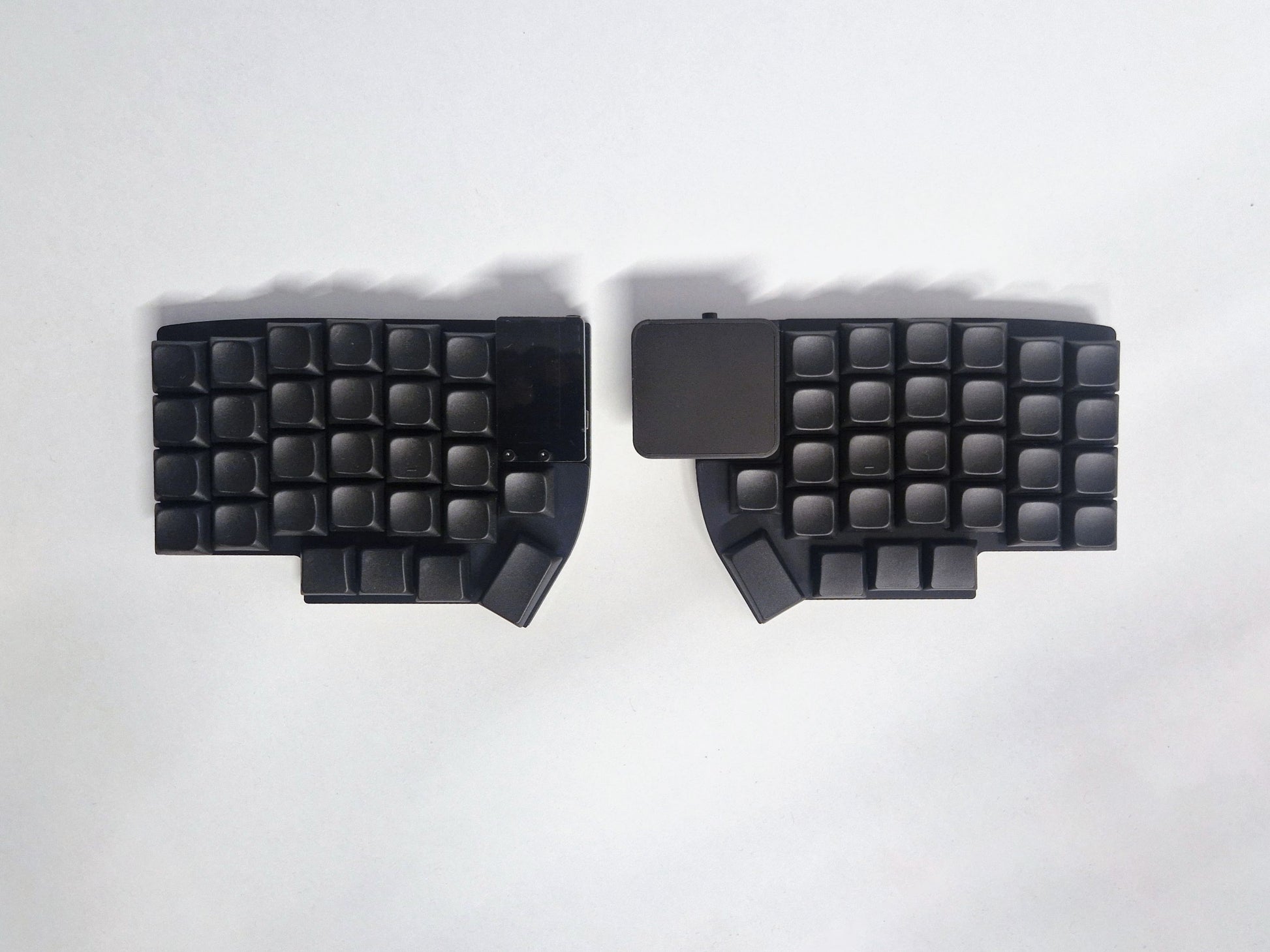

The touchpad module consists of an Azoteq TPS43 Touchpad mounted on top of a controller. The idea is to use this on a split keyboard instead of one of the controllers.

Features:

• high resolution 43x40mm surface, best in class sensitivity
• 1 / 2 finger tap
• press & hold
• swipe, pinch & zoom, scroll gestures

See QMK docs for more information on what this device supports.

The base price comes in kit form and includes:

• TPS43-201A-B touchpad
• adapter PCB
• smooth 2mm matte black acrylic top surface
• printed mount


To get a complete, no soldering required module that can just be swapped with an existing controller, add the build service with a controller and headers.

The touchpad uses I2C and thus requires the SDA / SCL pins to be unused! For example, the stock Ferris Sweep PCB uses these pins for switches. Contact us if you're not sure about compatibility.

---

Want to build one? Check the guide!
