PG1316S Practice Board

This is a practice PCB for Kailh's PG1316S switch. As this switch is an SMD switch that is rather new, you may use this PCB to practice soldering the switch before building your keyboard.

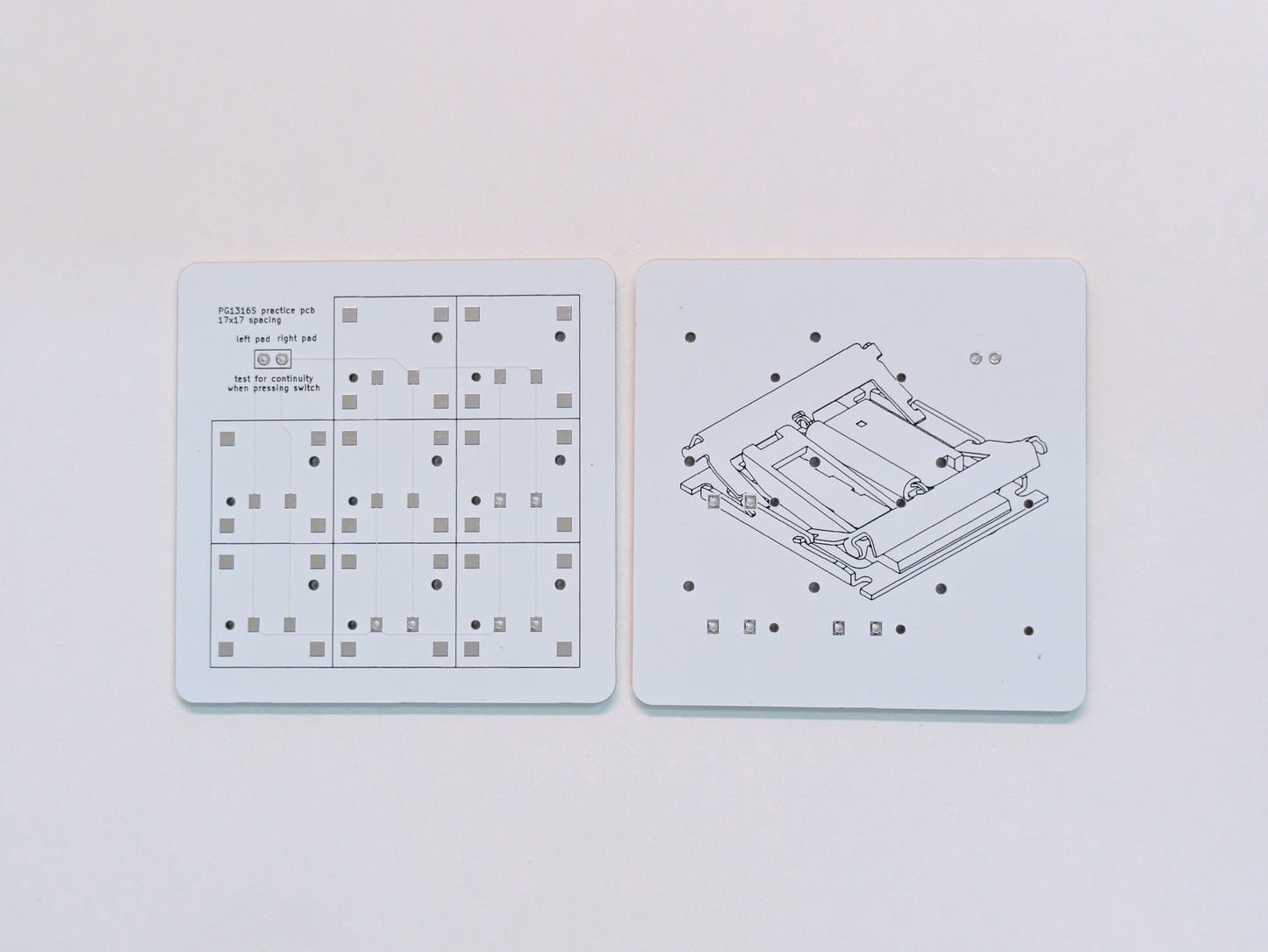

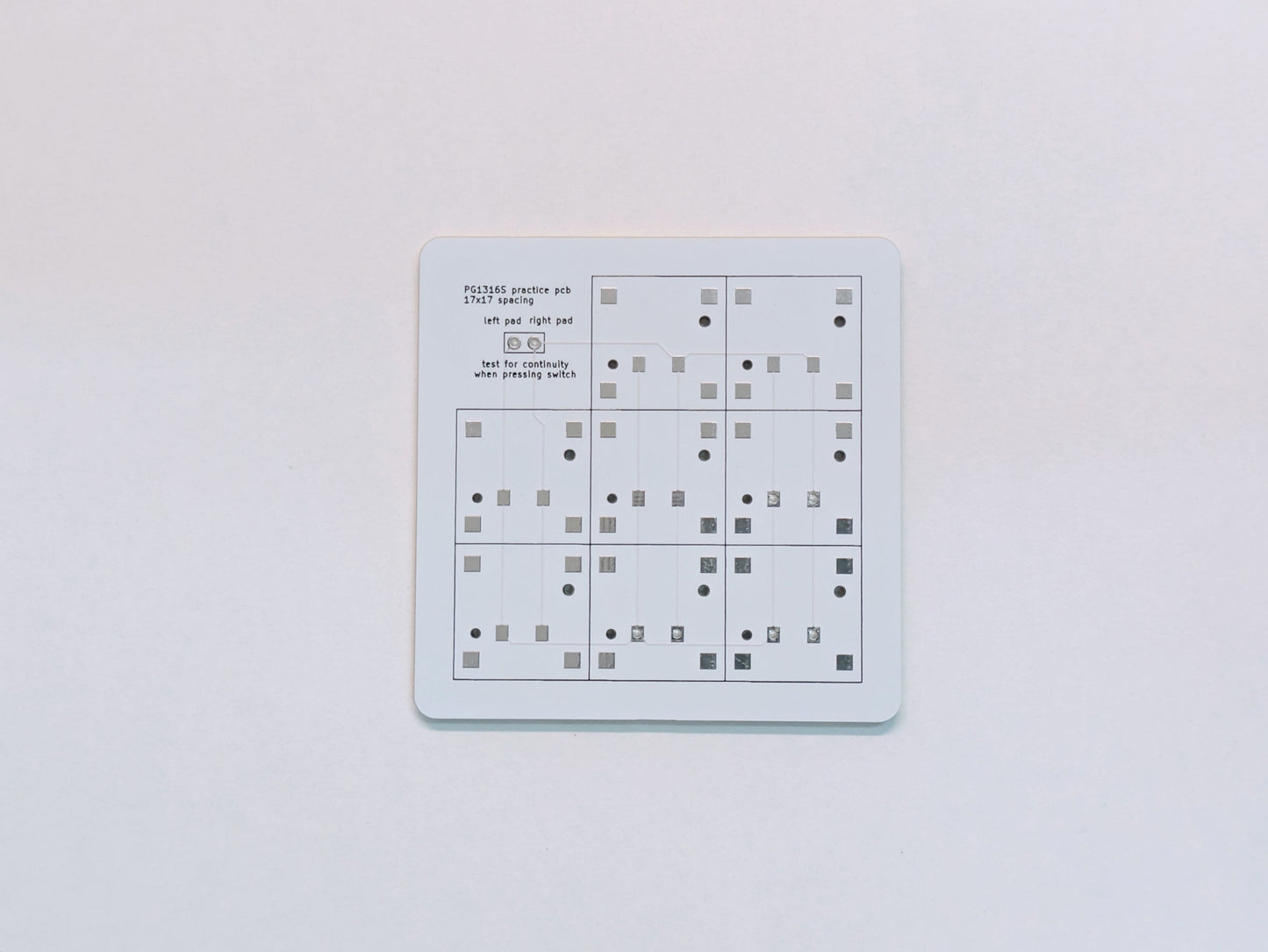

The PCB has two solder styles: the first is plain pads meant to be used with solder paste and a hot plate / reflow oven for completing the soldering. The second (lower right corner swtiches) has through holes for the switch contact plates. This is meant to be soldered from the bottom side of the PCB with a soldering iron.

For verification, probe the two test points with a multimeter for continuity when pressing a soldered switch.
