Headers

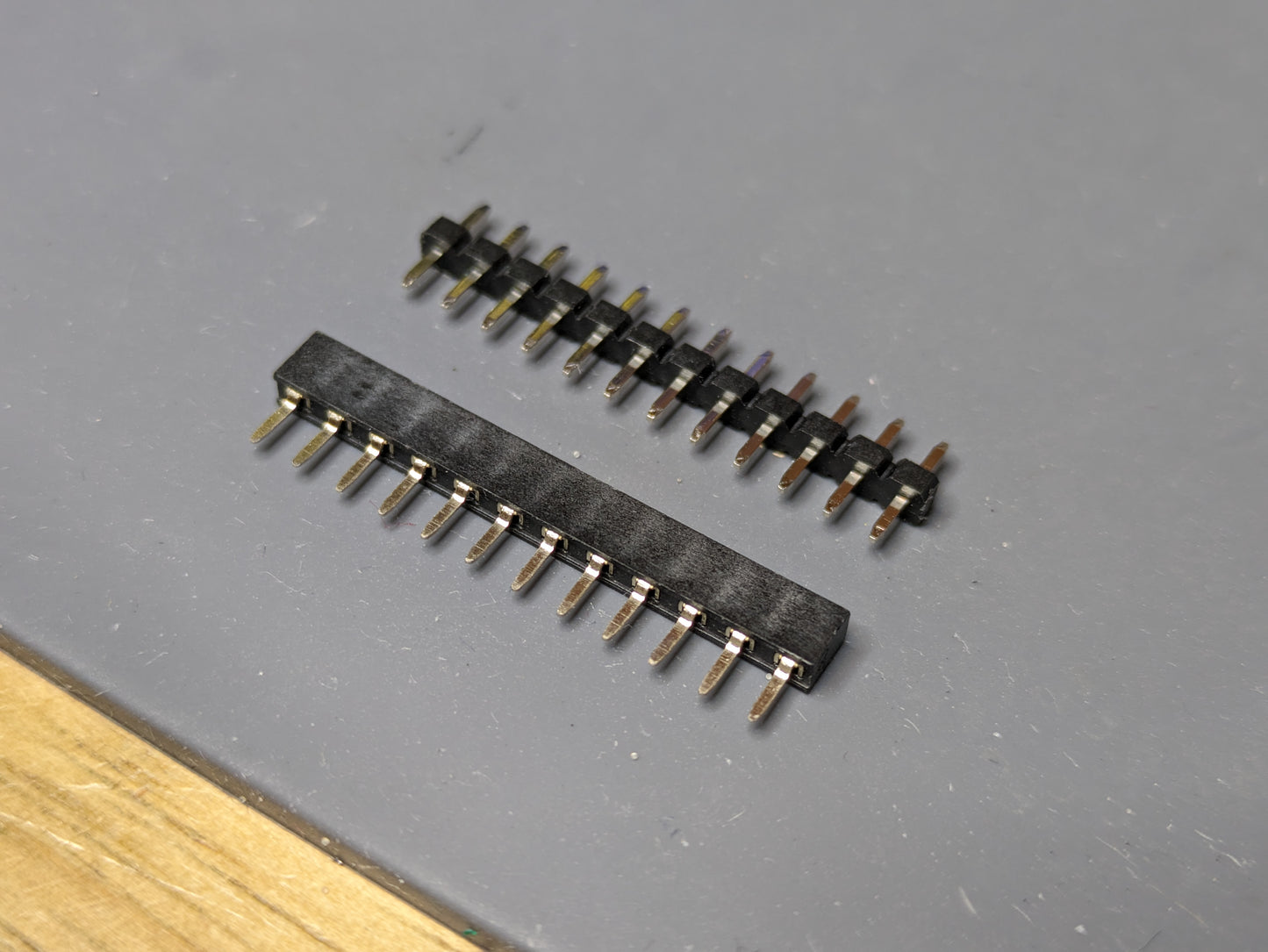

12 pin sockets and headers for controllers that come in two styles:

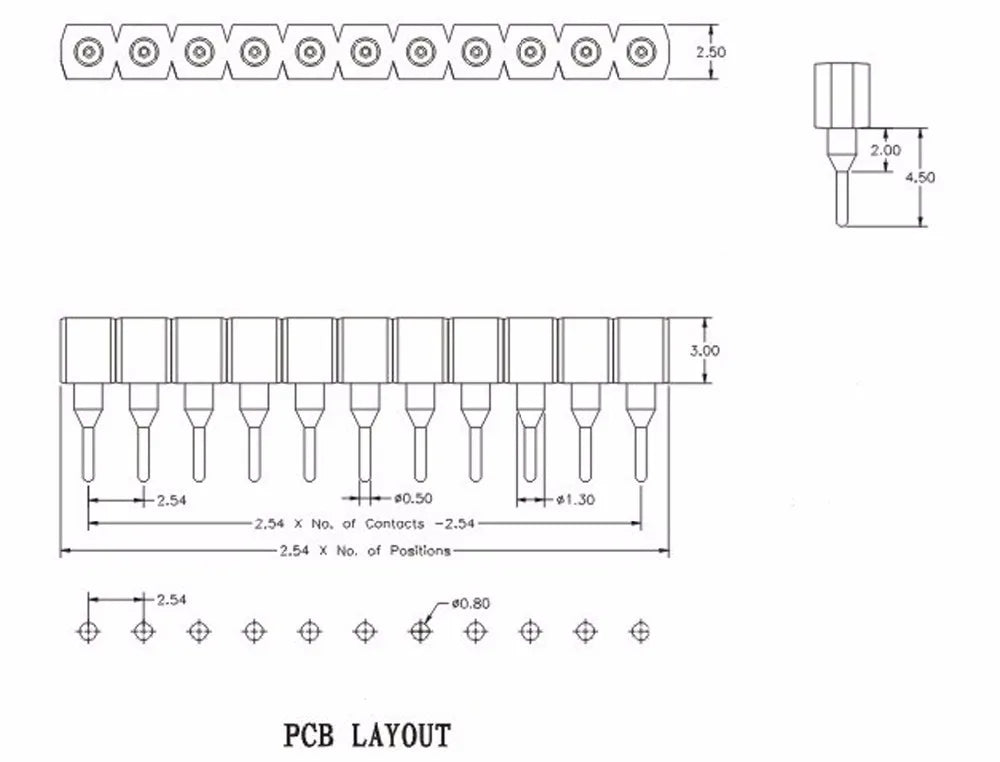

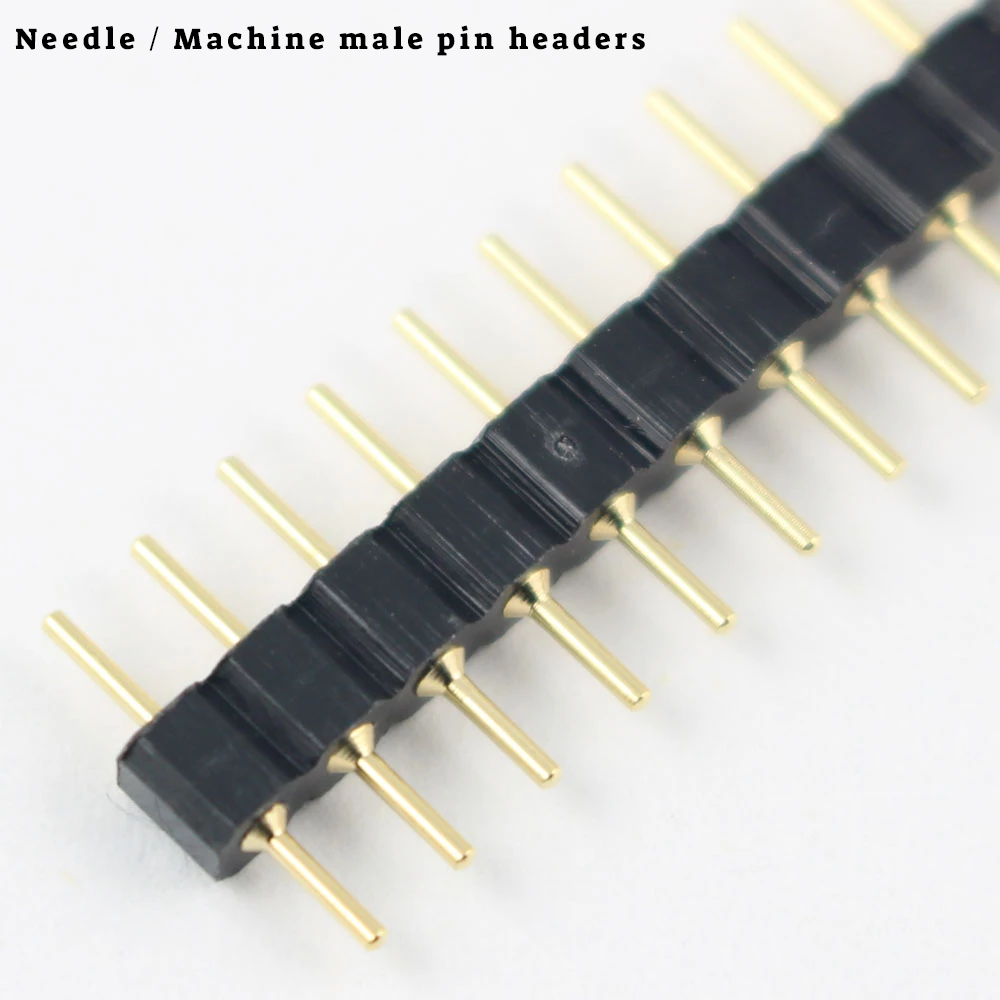

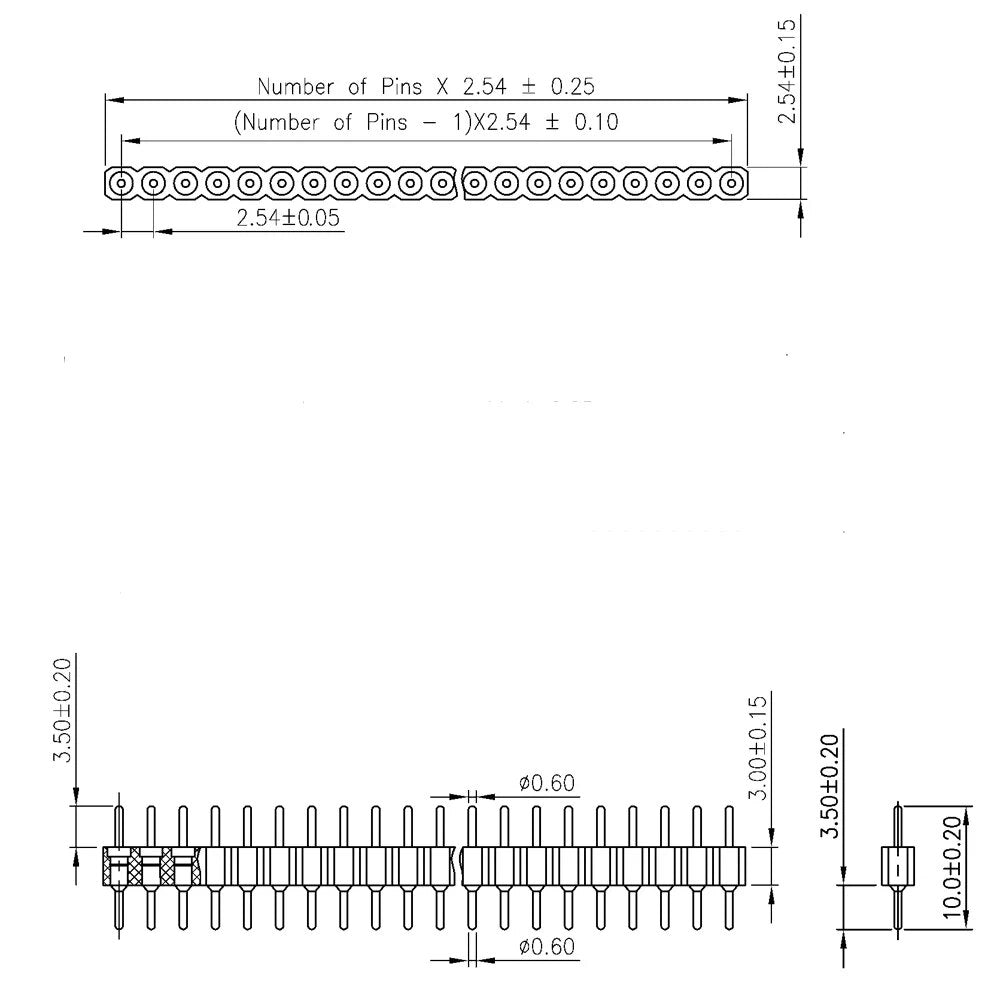

1. Machine headers, also sometimes called swiss or needle headers. These are manufactured in 40 pin strips and are cut to length.

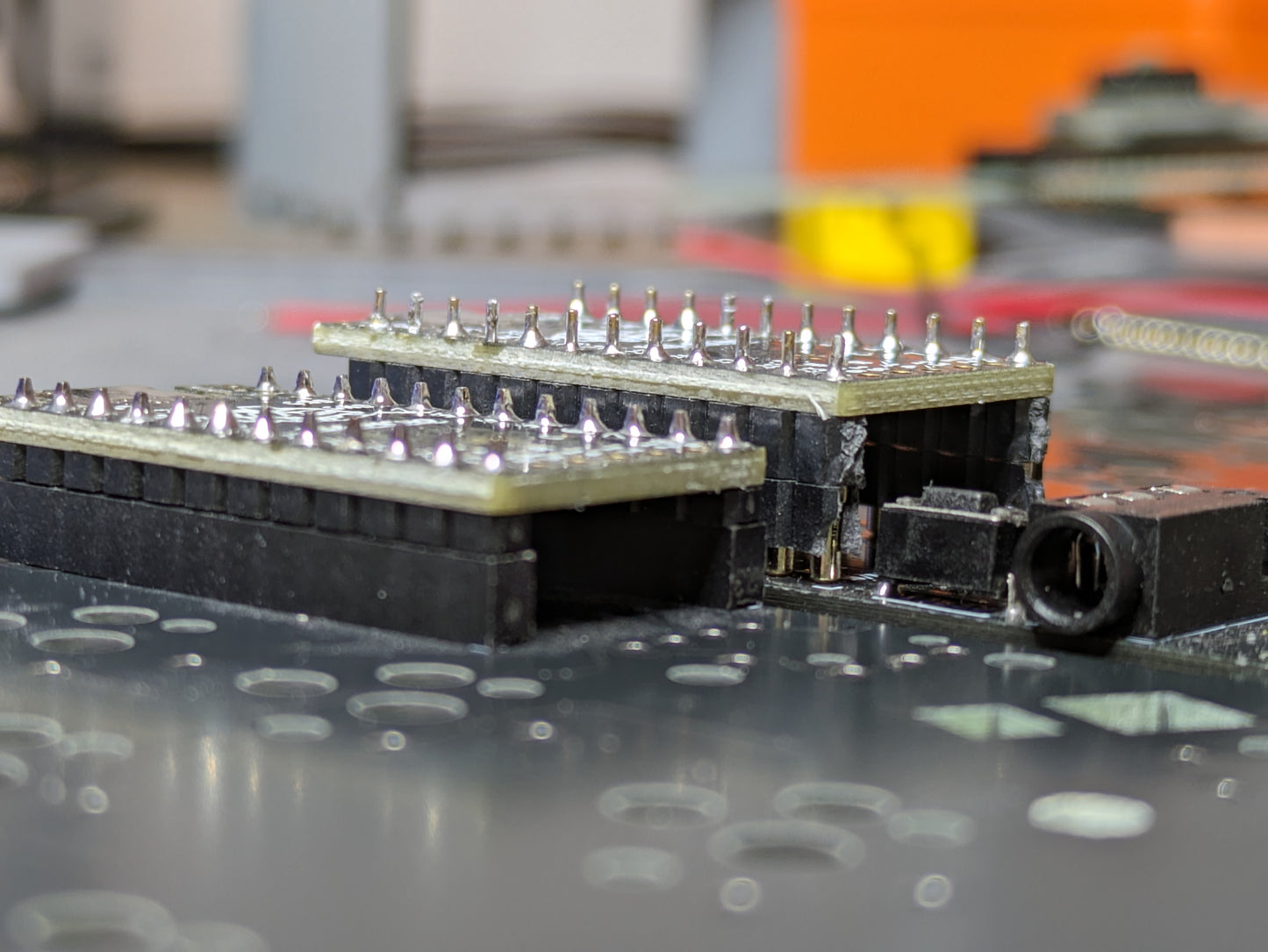

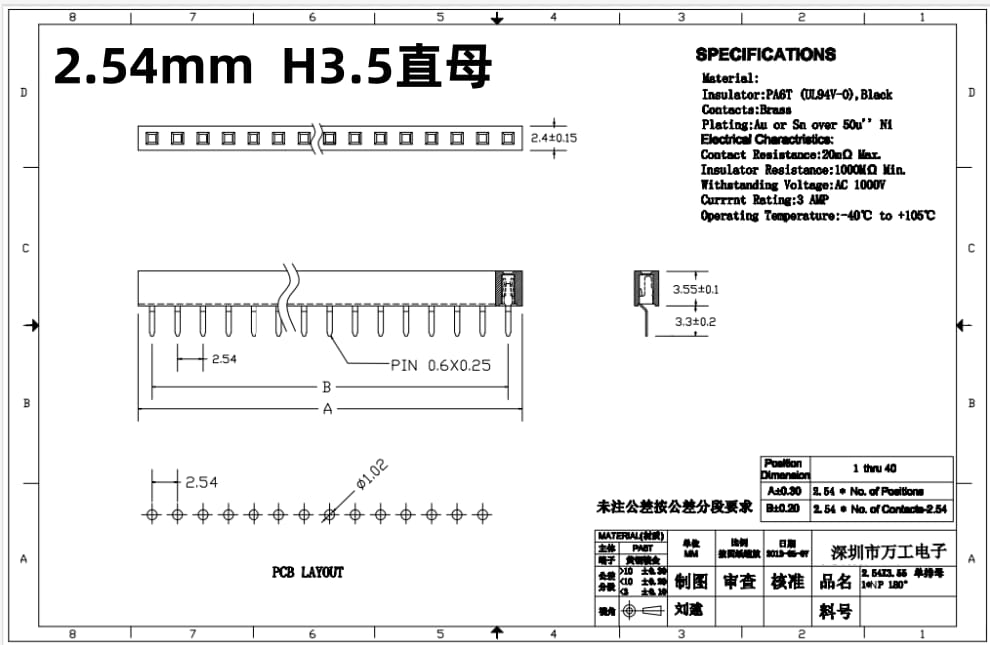

2. Custom low profile headers (5 mm from PCB to controller). These are manufactured in 12 pin strips and thus have a better looking beginning/end.

Low profile headers are recommended for low profile keyboards. Both can be used on MX keyboards.
